【HG-225】Crosby 花籃螺栓鉤+環(huán)眼型
|
螺紋直徑和收縮距（in.） |
HG-225貨號 |
工作載荷（lbs） |
單重（lbs） |

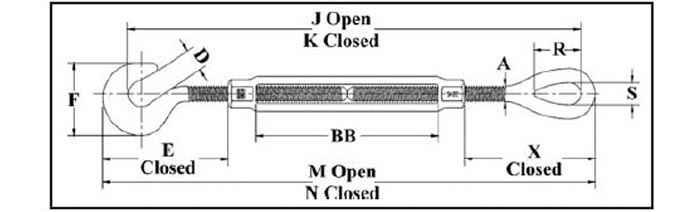

各部分尺寸（in.） |
|
A |
D |
E封閉端 |
F |
J敞開端 |
K封閉端 |
M敞開端 |
N封閉端 |
R |
S |
X封閉端 |
BB |
|
† 1/4 x 4 |
1030636 |
400 |
.31 |
.25 |
.44 |
1.67 |
1.27 |
11.66 |
7.66 |
12.29 |
8.29 |
.81 |
.34 |
1.76 |
4.07 |
|
† 5/16 x 4-1/2 |
1030654 |
700 |
.50 |
.31 |
.50 |
2.00 |
1.50 |
13.50 |
9.00 |
14.28 |
9.78 |
.95 |
.44 |
2.20 |
4.58 |
|
† 3/8 x 6 |
1030672 |
1000 |
.79 |
.38 |
.56 |
2.28 |
1.76 |
17.09 |
11.09 |
18.04 |
12.04 |
1.13 |
.53 |
2.48 |
6.10 |
|
1/2 x 6 |
1030690 |
1500 |
1.80 |
.50 |
.65 |
3.53 |
2.28 |
19.57 |
13.57 |
20.79 |
14.79 |
1.41 |
.71 |
3.56 |
6.03 |
|
1/2 x 12 |
1030734 |
1500 |
2.70 |
.50 |
.65 |
3.51 |
2.28 |
31.86 |
19.86 |
33.08 |
21.08 |
1.41 |
.71 |
3.54 |
12.36 |
|
5/8 x 6 |
1030752 |
2250 |
2.98 |
.63 |
.90 |
4.24 |
2.81 |
21.11 |
15.11 |
22.61 |
16.61 |
1.80 |
.88 |
4.35 |
6.03 |
|
5/8 x 12 |
1030798 |
2250 |
4.35 |
.63 |
.90 |
4.23 |
2.81 |
33.45 |
21.45 |
34.95 |
22.95 |
1.80 |
.88 |
4.34 |
12.39 |
|
3/4 x 6 |
1030814 |
3000 |
4.21 |
.75 |
.98 |
5.07 |
3.33 |
22.61 |
16.61 |
24.45 |
18.45 |
2.09 |
1.00 |
5.12 |
6.13 |
|
3/4 x 12 |
1030850 |
3000 |
6.52 |
.75 |
.98 |
5.04 |
3.33 |
35.01 |
23.01 |
36.85 |
24.85 |
2.09 |
1.00 |
5.09 |
12.59 |
|
3/4 x 18 |
1030878 |
3000 |
8.24 |
.75 |
.98 |
5.07 |
3.33 |
47.01 |
29.01 |
48.85 |
30.85 |
2.09 |
1.00 |
5.12 |
18.53 |
|
7/8 x 12 |
1030896 |
4000 |
9.34 |
.88 |
1.13 |
5.82 |
3.78 |
36.11 |
24.11 |
38.23 |
26.23 |
2.38 |
1.25 |
5.79 |
12.16 |
|
1 x 12 |
1030958 |
5000 |
13.9 |
1.00 |
1.25 |
6.56 |
4.25 |
37.65 |
25.65 |
40.06 |
28.06 |
3.00 |
1.43 |
6.50 |
12.18 | ＊試驗負荷是工作載荷的2.5倍，破斷負荷是工作載荷的5倍。
